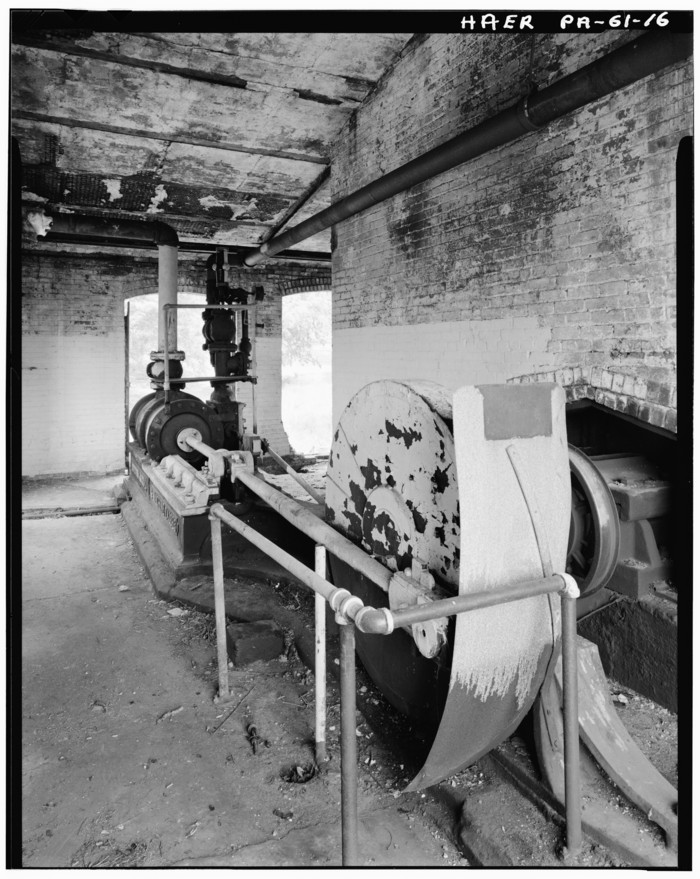

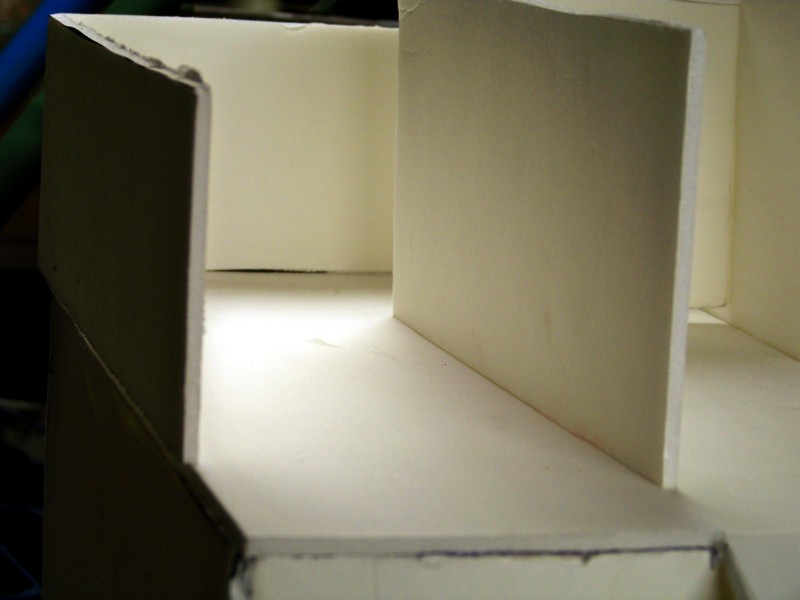

Re: N Gauger's Scratchbuild '09 Summer Challenge - ngauger - 07-27-2009 Ok - here are Proto & Model views Re: N Gauger's Scratchbuild '09 Summer Challenge - ngauger - 07-27-2009 and the point of the tunnel where the air is split (To the left) the wall of foamboard is where the fence is on the prototype Re: N Gauger's Scratchbuild '09 Summer Challenge - ngauger - 08-05-2009 Testing the bricks I Printed bricks from an online pic. Re: N Gauger's Scratchbuild '09 Summer Challenge - Spitfire - 08-05-2009 Looking good Mikey!!! Val Re: N Gauger's Scratchbuild '09 Summer Challenge - Lester Perry - 08-05-2009 wow or maybe bow wow would be better Re: N Gauger's Scratchbuild '09 Summer Challenge - ngauger - 08-06-2009 LOL Les - that's Wiley E. Coyote - My forman hehehe Re: N Gauger's Scratchbuild '09 Summer Challenge - ngauger - 08-06-2009 Ok - the floors are being painted... The roofs are started "Fitting pieces together" Just to give a comparison between the picture and the building Re: N Gauger's Scratchbuild '09 Summer Challenge - nachoman - 08-06-2009 Looking quite interesting... Re: N Gauger's Scratchbuild '09 Summer Challenge - Lester Perry - 08-07-2009 Oh yeah, It is really beginning to take shape now. Re: N Gauger's Scratchbuild '09 Summer Challenge - ngauger - 08-11-2009 More work on fan I had to design a "Center support for the fan, since the framwork would not hold the weight of the blades if i built it all out of balsa. The support frame is foam, but there's more below Re: N Gauger's Scratchbuild '09 Summer Challenge - ngauger - 08-11-2009 backup for "foam support" an Erector Set beam - screwed into the foam and holding up the axel of the fan Re: N Gauger's Scratchbuild '09 Summer Challenge - ngauger - 08-11-2009 Now - to build the blades..... 1 down - 9 more to go!! Re: N Gauger's Scratchbuild '09 Summer Challenge - ngauger - 08-11-2009 and - then attach said blade to fan support Re: N Gauger's Scratchbuild '09 Summer Challenge - ngauger - 08-11-2009 Now go back up and look again at the first set of pics... You'll see the fan support, with blade attached - and the erector set beam behiond the "foam' beam <!-- l --><a class="postlink-local" href="http://www.the-gauge.net/forum/viewtopic.php?f=37&t=1462&p=26974#p26969">viewtopic.php?f=37&t=1462&p=26974#p26969</a><!-- l --> Re: N Gauger's Scratchbuild '09 Summer Challenge - ngauger - 08-17-2009 Some more progress pics - i had to actually use a toggle bolt to hold 2 pieces together to glue them This thing is way too big |
