RE: Remaking of the Ridley Keystone & Mountain - tompm - 09-14-2021

I decided to step away from the engine terminal for a time and work on the passenger station. In order to finish the layout of the engine terminal I need to know where the passenger station is going.

First step in putting together the passenger station is the assembling the platforms.

[Image: St19JBo.jpg]

[Image: 2NxYUu2.jpg]

I painted the platforms and the top of the roofs using a rattle can. The bottom of the roof, lights, support posts, benches, and signs were painted using a airbrush. Once the paint was dry I built the stair assembly.

[Image: F3iJI0Z.jpg]

Next installed the support posts and light fixtures. I painted the bottom of the fixtures white.

[Image: jdWjT3C.jpg]

Attached the roof sections and placed them on the layout to see how they looked.

[Image: a7XRCVH.jpg]

[Image: R8PzMZG.jpg]

[Image: kSd6mgf.jpg]

I assembled the benches and signs.

[Image: hyHp8Tx.jpg]

Coming up. Add the benches and signs to the platforms. Build the second set. Weather them.

RE: Remaking of the Ridley Keystone & Mountain - tompm - 09-19-2021

Time to change things up. I cannot make any further useful progress on the Engine Terminal until I get the passenger station place. The station will determine the limits of the urban area.

First step is to build the station platforms. For this I am going to assemble Walthers Cornerstone Butterfly Platform Shelter

[Image: Plv8YDk.jpg]

Here is what the open box looks like.

[Image: cq29joM.jpg]

I used a rattle can to paint the concrete parts and top of the shelter roofs. I airbrushed the supports and underside of the shelter roofs.

Assemble the stairs.

[Image: WBcStAE.jpg]

Add the supports and lights to the underside of the shelters. Paint the bottom of the lights.

[Image: 7J0rmR8.jpg]

Platforms' assembled and place in approximate location.

[Image: psJRlTm.jpg]

[Image: 8kfMviI.jpg]

[Image: BZ20TCR.jpg]

RE: Remaking of the Ridley Keystone & Mountain - tompm - 09-19-2021

Benches and signs.

[Image: GCtiqTR.jpg]

Weathered and ready.

[Image: gU69BMJ.jpg]

[Image: chV4xTO.jpg]

Next is the passenger station itself.

RE: Remaking of the Ridley Keystone & Mountain - ezdays - 09-20-2021

Nice, that looks like it will fit well with what you're doing.

RE: Remaking of the Ridley Keystone & Mountain - doctorwayne - 09-20-2021

(09-20-2021, 06:25 AM)ezdays Wrote: Nice, that looks like it will fit well with what you're doing.

I agree with Don, and the fact that your layout is topped with styrofoam should make installation of those platforms (and their staircases) easy.

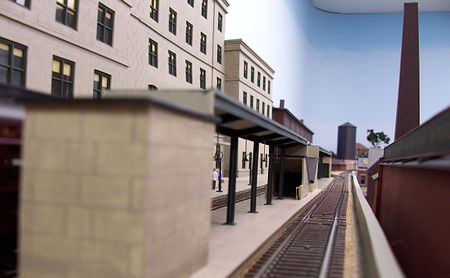

I scratchbuilt my butterfly platforms, but faked the stairwells, as the tracks are atop 3/4" plywood and in a pretty-well inaccessible area to attempt using a jigsaw...





The "stairs" are simply the plywood painted black, good enough, I think, as it's not near the front of the layout.

Wayne

RE: Remaking of the Ridley Keystone & Mountain - tompm - 09-20-2021

Thanks Don and Wayne

(09-20-2021, 10:00 AM)doctorwayne Wrote: I agree with Don, and the fact that your layout is topped with styrofoam should make installation of those platforms (and their staircases) easy.

For once I actually look like I know what I am doing using the foam. It took me about a 20 minutes to cut the foam out for the stairs. Biggest problem was I only have a dull knife to use for cutting the foam. I will get a couple of photos of the platforms in place soon.

RE: Remaking of the Ridley Keystone & Mountain - tompm - 09-20-2021

Next structure on the list is Walthers Union Station kit.

The Box

[Image: 9urPzfy.jpg]

The untouched parts

[Image: elRFRfW.jpg]

Coloring the mortar lines. I know it is hard to see in the photos. I did two coats. Frist was a darker gray and then an off white.

[Image: Ux2n6S7.jpg]

[Image: cEzHlBU.jpg]

[Image: kB56q4O.jpg]

RE: Remaking of the Ridley Keystone & Mountain - tompm - 09-20-2021

The walls of the center section being assembled.

[Image: 8B44Obi.jpg]

[Image: 0WQHifz.jpg]

[Image: U9QhCfU.jpg]

[Image: Q1PhLgA.jpg]

RE: Remaking of the Ridley Keystone & Mountain - tompm - 09-20-2021

Next up is the left section.

Windows and "glass" installed

[Image: L3ij1dM.jpg?1]

Walls assembled

[Image: SHIgpvd.jpg]

Installed entrance awning

[Image: wPFOJIP.jpg]

Right section walls assembled

[Image: uNfE8F6.jpg]

Entrance awning added

[Image: 0tQOsFR.jpg]

RE: Remaking of the Ridley Keystone & Mountain - tompm - 09-20-2021

All sections in place

[Image: zh5vvXc.jpg]

Decals added

[Image: 7i2cXB8.jpg]

Rear with all sections

[Image: YsxzXkT.jpg]

RE: Remaking of the Ridley Keystone & Mountain - tompm - 09-20-2021

Front weathered

[Image: 9ppbL2B.jpg]

Rear weathered

[Image: rq0XPXv.jpg]

To me the weathering came out too dark. I will need to correct it.

In place with platforms. Notice stairs have been cut into the foam.

[Image: ZY3HOPU.jpg]

[Image: jrFxXZs.jpg]

RE: Remaking of the Ridley Keystone & Mountain - tompm - 09-22-2021

I went back and used a lighter color chalk on the station.

[Image: 2jIqqMF.jpg]

[Image: MtIR2IT.jpg]

Here is the station in place with the platforms

[Image: mPK580C.jpg]

[Image: L8VTHNU.jpg]

RE: Remaking of the Ridley Keystone & Mountain - ezdays - 09-23-2021

Progressing nicely, BTW, love those buses.... Thumbsup

RE: Remaking of the Ridley Keystone & Mountain - Tyson Rayles - 09-25-2021

Nice work.

RE: Remaking of the Ridley Keystone & Mountain - tompm - 10-25-2021

This is not much of an update but here it is.

Began painting the foam a brown color. This area is where Union Station is going to go and will be the first area where scenery will be added.

[Image: qdSbFsO.jpg]

[Image: Y6Erk5m.jpg]

Track was placed down and tested. It has been outlined. Not sure how well you can see the marker lines.

[Image: RUOotlh.jpg]

[Image: WoXqENM.jpg]

Next step will be removing the track. Using the outline I will place the roadbed. Once the roadbed is in place the track will be again placed down for testing.
