  Bachmann Geared Steam Climax
Posted by: Schraddel - 03-13-2024, 07:15 AM - Forum: Engineer's Technical Workshop - Replies (3)

Hello,

these fine locos are plagued with cracked gears. But not only the bevel pinions in the trucks are prone for cracking. There is a tiny spur gear deep hidden in the center gearbox. Here i post several photos to show in a step by step manner how to get there:

[Image: 47238367nx.jpg]
It's 3-Truck Climax with Walschaerts valve gear. The trucks are simply fixed by snap fasteners like in textiles. They can be easily clipped off.

[Image: 47238369qi.jpg]
Remove the 2 screws on the bottom plate of the center gearbox. And lift off the cover.

[Image: 47238371zw.jpg]
Remove output shaft.

[Image: 47238372gh.jpg]
Unscrew and remove valve gear on both sides.

[Image: 47238375tq.jpg]
Lift out jackshaft.

[Image: 47238377fo.jpg]
The boilershell is fixed with 4 screws:
2 unter the cab sides.
2 under the boiler.

[Image: 47238373qx.jpg]
Unscrew the small PCB and pry off gear cover.

[Image: 47238382wc.jpg]
Remove motor screws and motor.

[Image: 47238386ek.jpg]
Then you get acess to this screw hidden under the motor. Remove it.

[Image: 47238380ln.jpg]
Then you are able to lift out the center gear box.

[Image: 47238388gd.jpg]
Beware of the strutted frames. They are partly mounted on the gear box and have to be removed there.

[Image: 47238390uq.jpg]
Remove the screws on the side of the gear box.

[Image: 47238391bn.jpg]
Lift out this gear shaft.

[Image: 47238389zh.jpg]
Look an that! This is the faulty piece, a cracked spur gear (10 teeth, Module 0,5, shaft diameter 1.5mm)
Only the first releases are concerned. Later Bachmann made the little spur gear out of brass.
Remounting is in reversed order.
Hope this is helping somebody.

Lutz

Print this item

  when the desert blooms
Posted by: jim currie - 03-12-2024, 05:21 PM - Forum: Lower Berth - Replies (9)

this was taken out back of the shop I use to work at.
Jim



Attached Files Thumbnail(s)

Print this item

  AT&SF Drop Bottom Gondola
Posted by: Schraddel - 03-10-2024, 05:52 AM - Forum: HO Modeling - Replies (13)

Hello,

i was lucky to got further three Westerfield kits. This time 3 drop bottom gondolas of Santa Fe origin.
[Image: dsc08272n6d48.jpg]
First the content of one of the boxes.

[Image: dsc08275ctfqu.jpg]
Further unwrapped.
The parts are clean and straight. No match to the former "Warp 10" kits out of the brittle resin i had built earlier, see accordingly thread.

[Image: dsc08274n8efh.jpg]
2 Andrews trucks, 2 Kadee whisker scale head couplers and a Tichy brake gear were attached by me.

[Image: dsc08276kdeca.jpg]
[Image: dsc08277w2ddm.jpg]
[Image: dsc08278q0esv.jpg]
At first RTFM, here in form of the enclosed instruction sheets. Also much interesting information about the prototype can be found there.

This was only the unboxing article.


Lutz

Print this item

  Weekly Phot Fun 3/8 - 3/14/24
Posted by: bdw9535 - 03-08-2024, 06:06 PM - Forum: Shutterbug area - Replies (12)

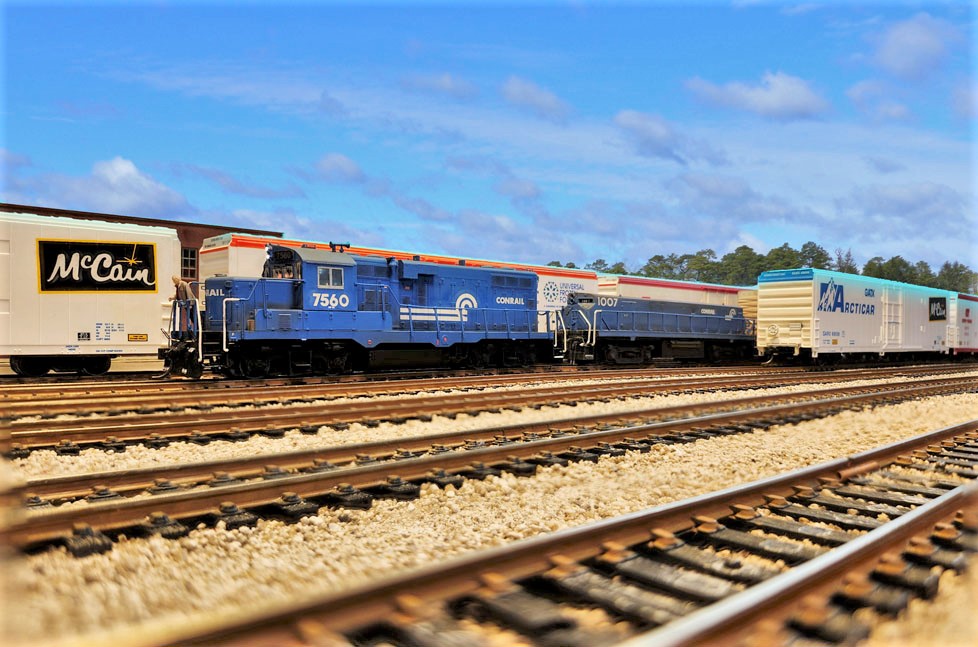

YPMA-02 working Mannheim Yard.

Bruce



Print this item

  on the road again
Posted by: jim currie - 03-03-2024, 07:34 PM - Forum: Upper Berth - Replies (5)

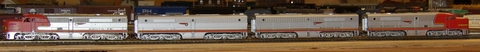

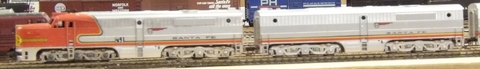

thanks to Charlie B one of my favorite consists is running again all 1970 Athearn that draw a whopping 3 amps.



Attached Files Thumbnail(s)

Print this item

  Professor Fake's Rocket Sled
Posted by: cnrglen - 03-02-2024, 11:20 PM - Forum: HO Modeling - Replies (13)

Now for something a bit different:

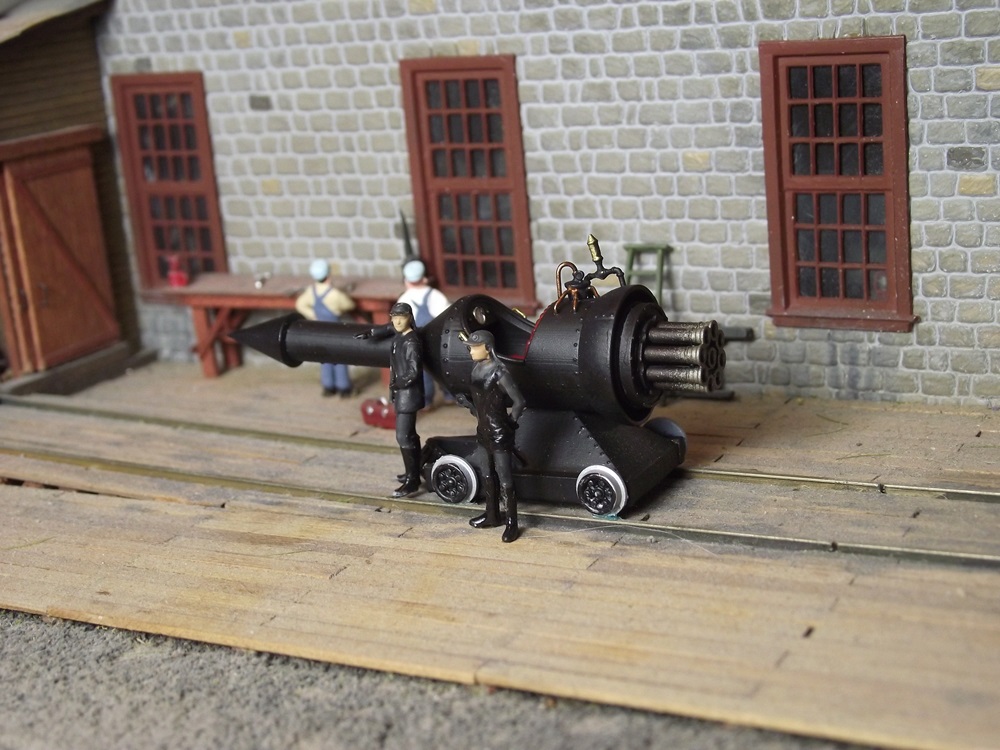

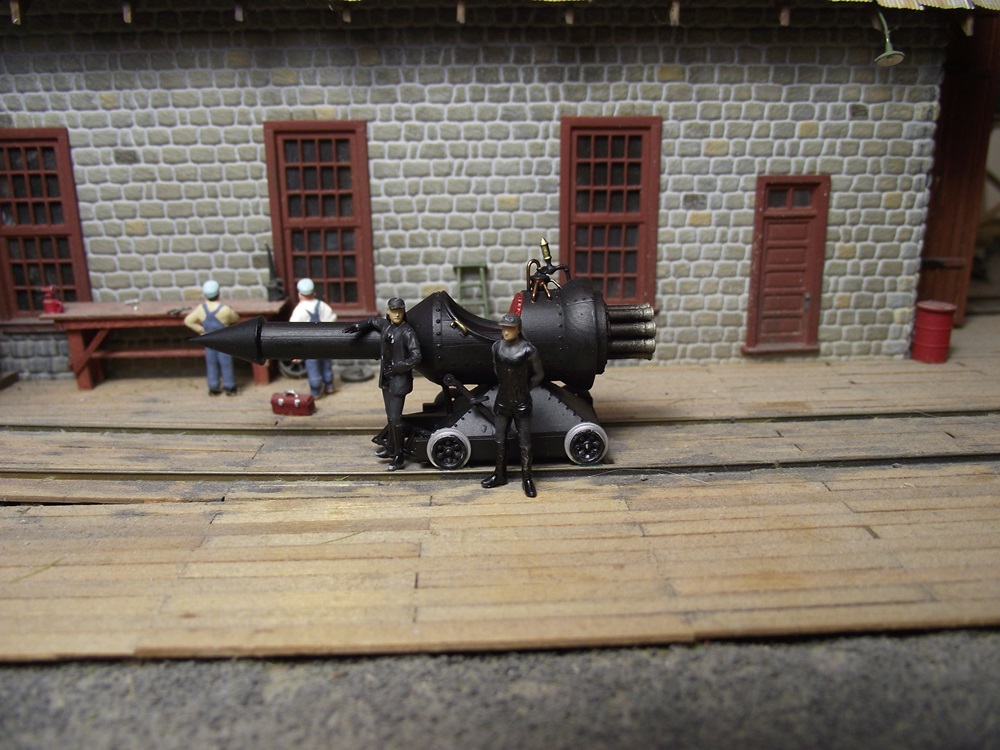

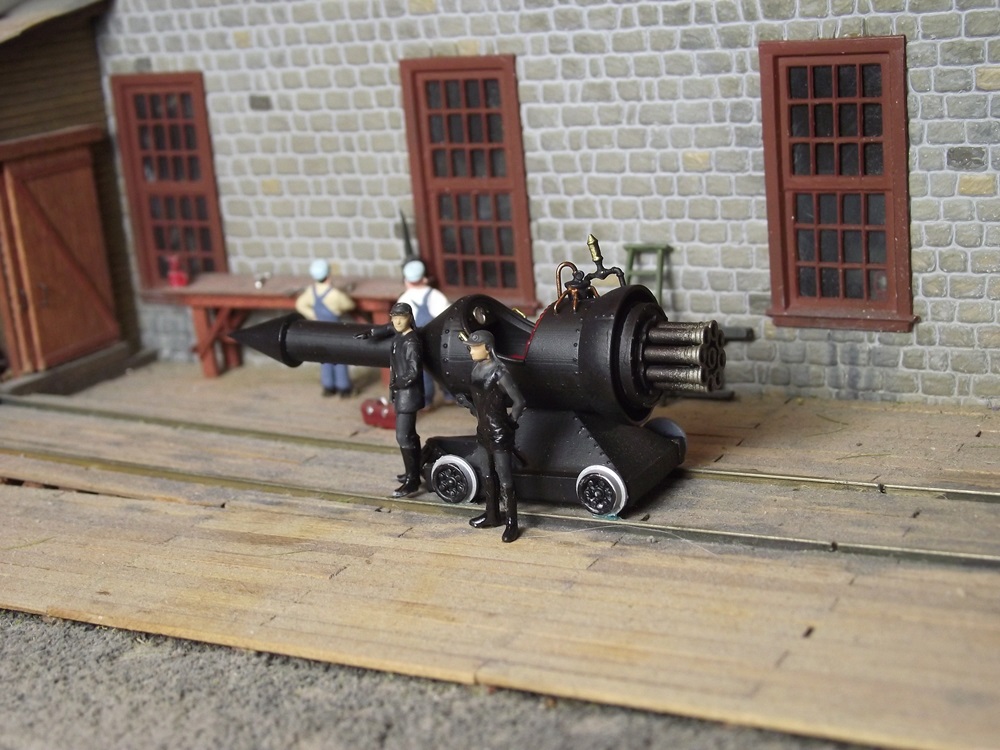

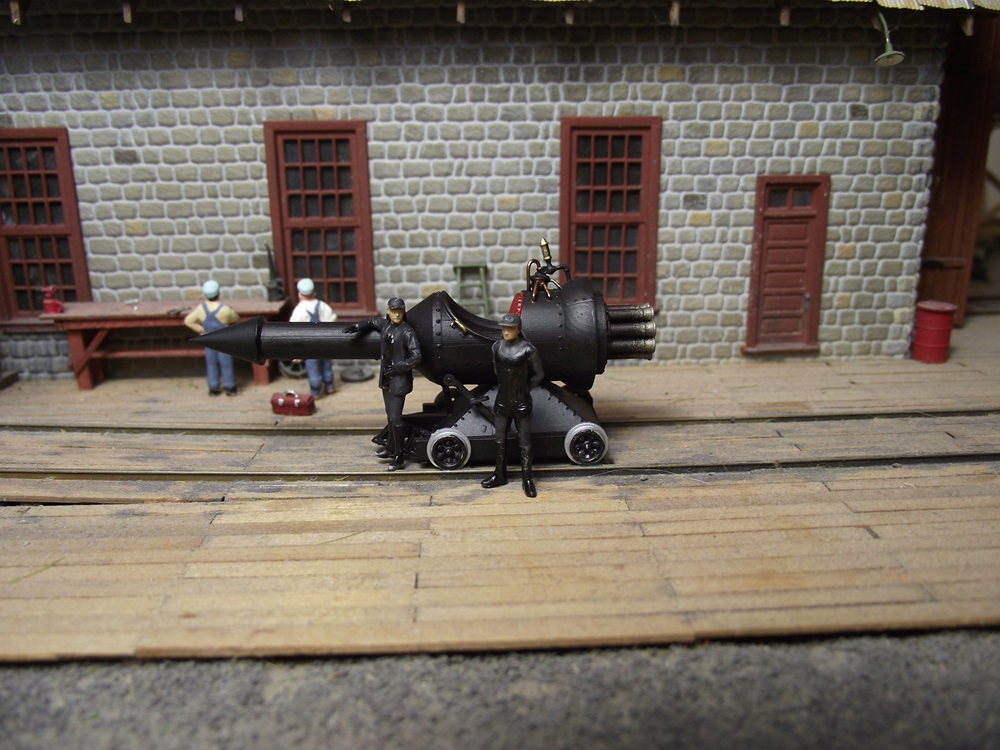

I got the 3-d printed kit from Interaction Hobbies, based on the rocket sled of Professor Fate in the movie 'The Great Race'




It also comes with the figures standing beside it as well as two seated figures.
I'm thinking of using it as a flatcar load.

Print this item

  Weekly Photo Fun 2/29 - 3/6/24
Posted by: bdw9535 - 02-29-2024, 05:03 PM - Forum: Shutterbug area - Replies (15)

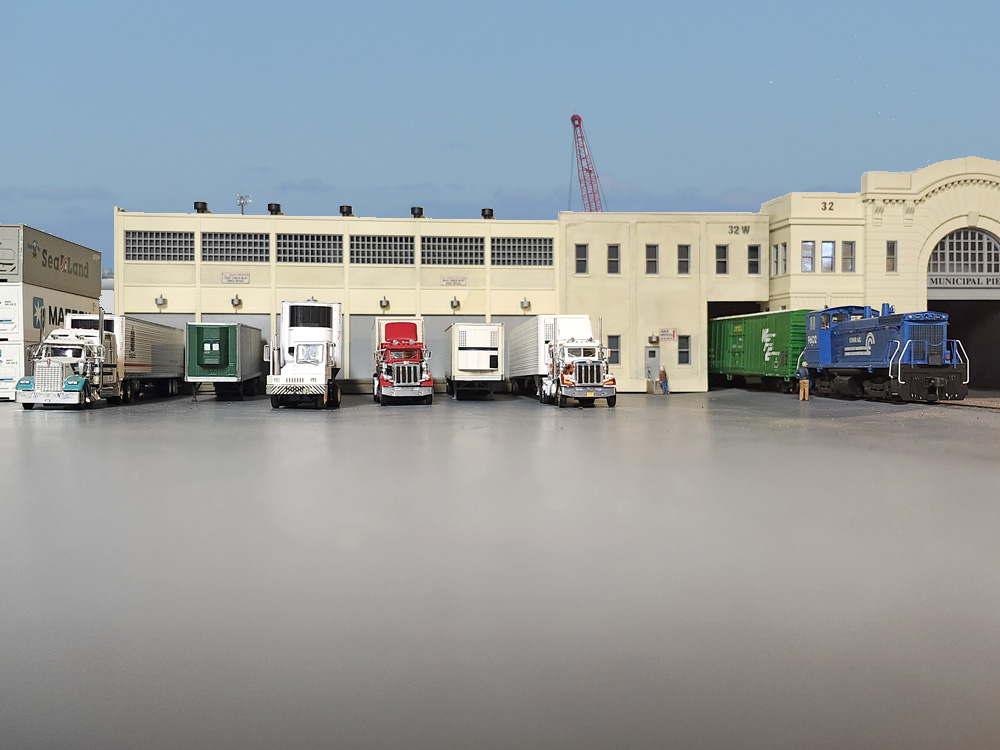

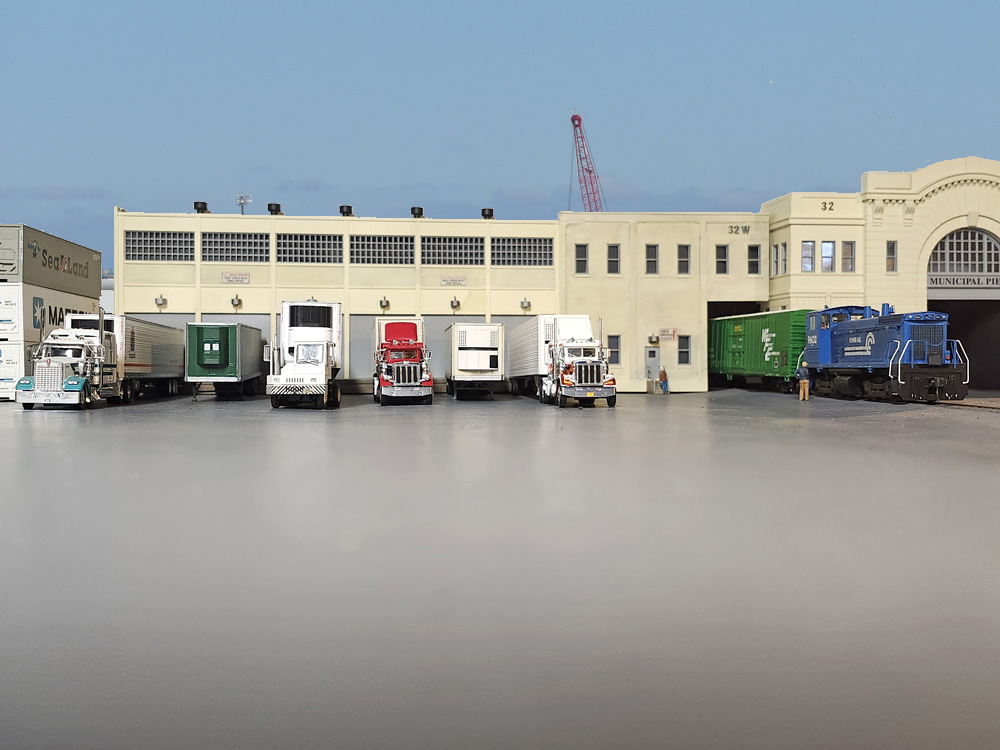

WPMA-40 at Pier 32W.

Bruce



Print this item

  Light And Magnifiers
Posted by: Schraddel - 02-27-2024, 10:06 AM - Forum: Tools - Replies (12)

Hello,

we all grew older and our senses now may be not as they were in our youth. To compensate this we have take measures in respect of this. Me too, my eyes became less effective in relation to as they were in previous years. This is a sneaking process and you have to accept it. In short; there a two main things:
1) The ability to focus the eye onto objects near by became more difficulty.
2) The need fo more light.

Here i will show and dicuss the measures i have taken. And i invite you to participate and show us what you have done to keep the hobby enjoyable. Not the medical aspect is here in the focus, but the technical devices like lamps and magnifying glasses you. Tell us about of your devices and about your experiences with them and if they suit or are not so good.


[Image: dsc070045isd0.jpg]
At first i started with the classic handheld magnifier glass. Yes it does what it is intended for. But you are then one-handed because you have to use one hand to keep the glass. My experience; this is benefical when you want to check or examine something. But working on the object is not really possible becaus one-handed. You need something which holds the magnifier.
This was the next step for me to purchase this, so called, soldering aid. A magnifier onto a flexible shaft which can be bend to bring a work piece into focus. Additional there a two crocodile style claws for fixing work pieces. And additional there are also two bright LEDs in the frame of the magnifier glass, powered by 3 AAA batteries in the pedestal.
My conclusions about it is, that the magnifier glass is too small in diameter to enable sterocopic vision of a workpiece. And in my opinion is stereoskopic vision a basic requirement to work on tiny pieces.
But i found other application for this devive:
- As mobile independent lamp were you need light instandly.
- For reading tiny printed numbers on model railroad cars; some modern flat cars have such tiny print. The LEDs light will help a lot in dark corners.
- Quick disposabiltiy, e.g. when you want to remove a scale of wood with a tweezers.
- This became a faithful travel companion when i went as exhibitor to shows and conventions.


Lutz

Print this item

  Weekly Photo Fun 2/23 - 2/29/24
Posted by: bdw9535 - 02-23-2024, 07:55 PM - Forum: Shutterbug area - Replies (9)

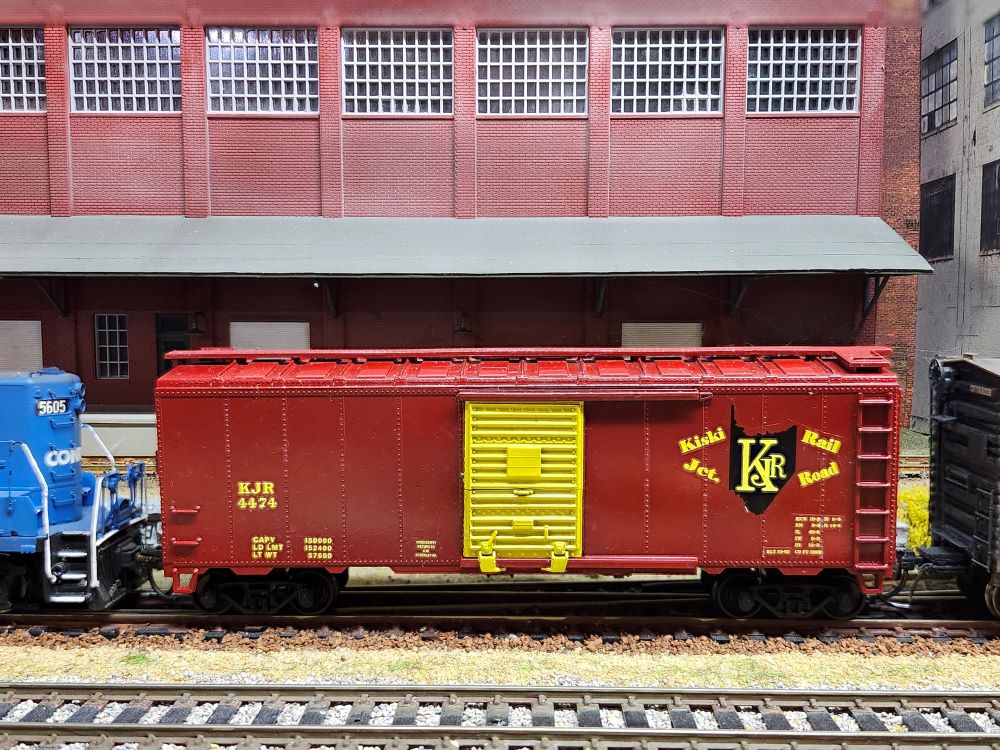

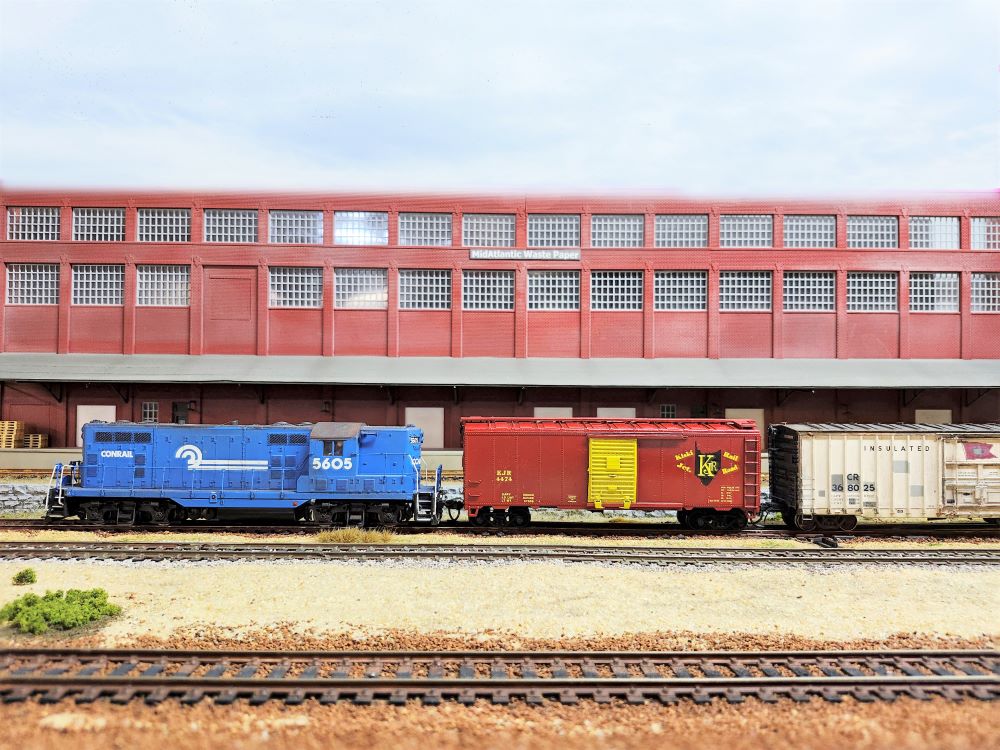

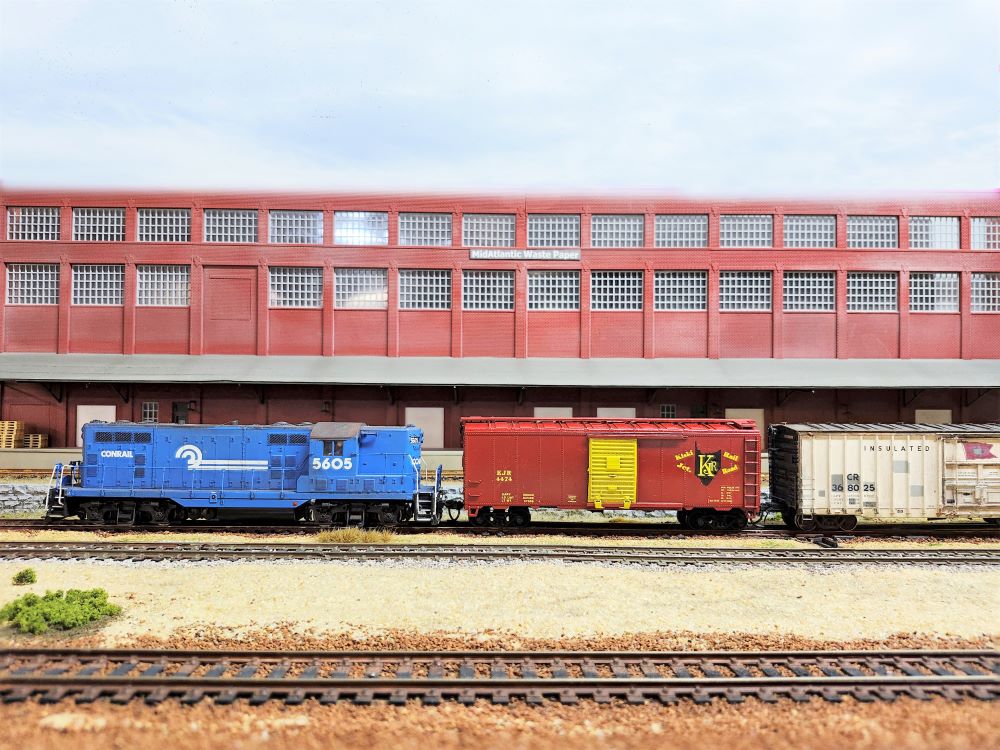

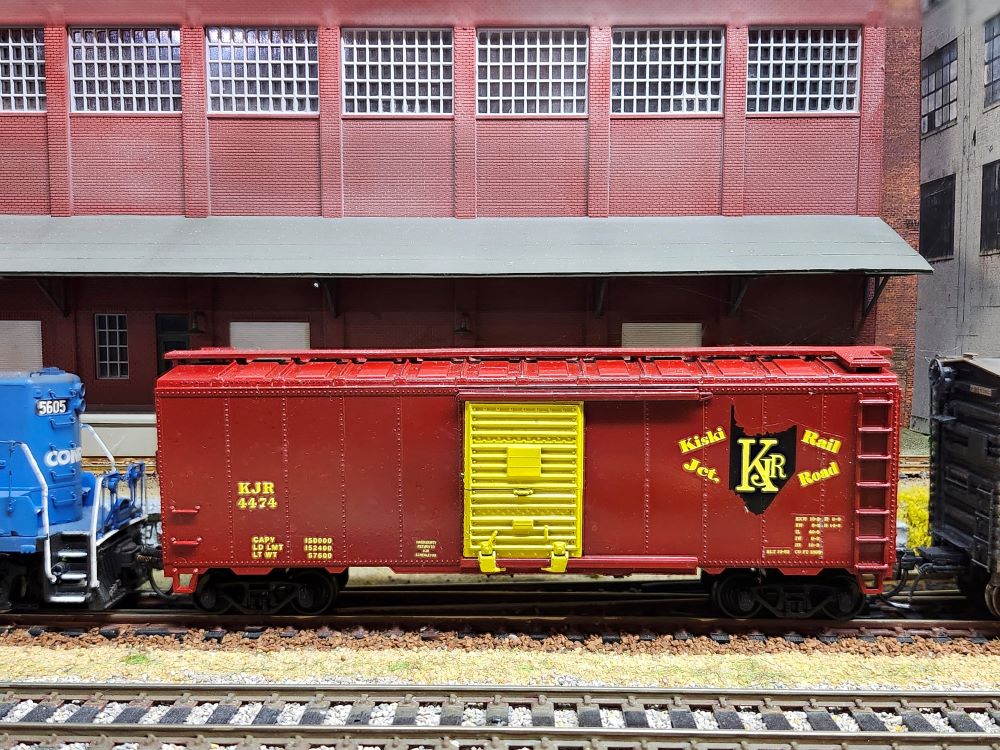

This Kiski Junction RR boxcar arrived from the Wilderson Division in Ohio.  A thank you to Charlie for his generous gift. Worship Worship

Bruce





Print this item

  in need of
Posted by: jim currie - 02-23-2024, 01:04 AM - Forum: Upper Berth - Replies (2)

would anyone have an extra one of thease its from a 1970 PA , if you do PM me a price.



Attached Files Thumbnail(s)

Print this item
